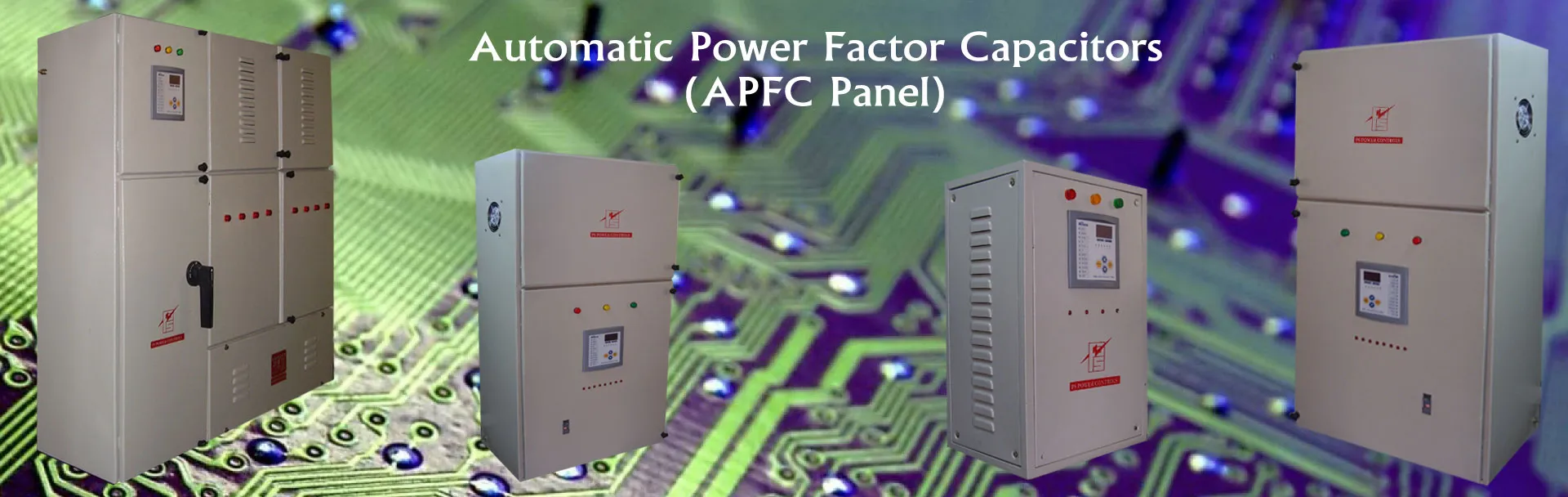

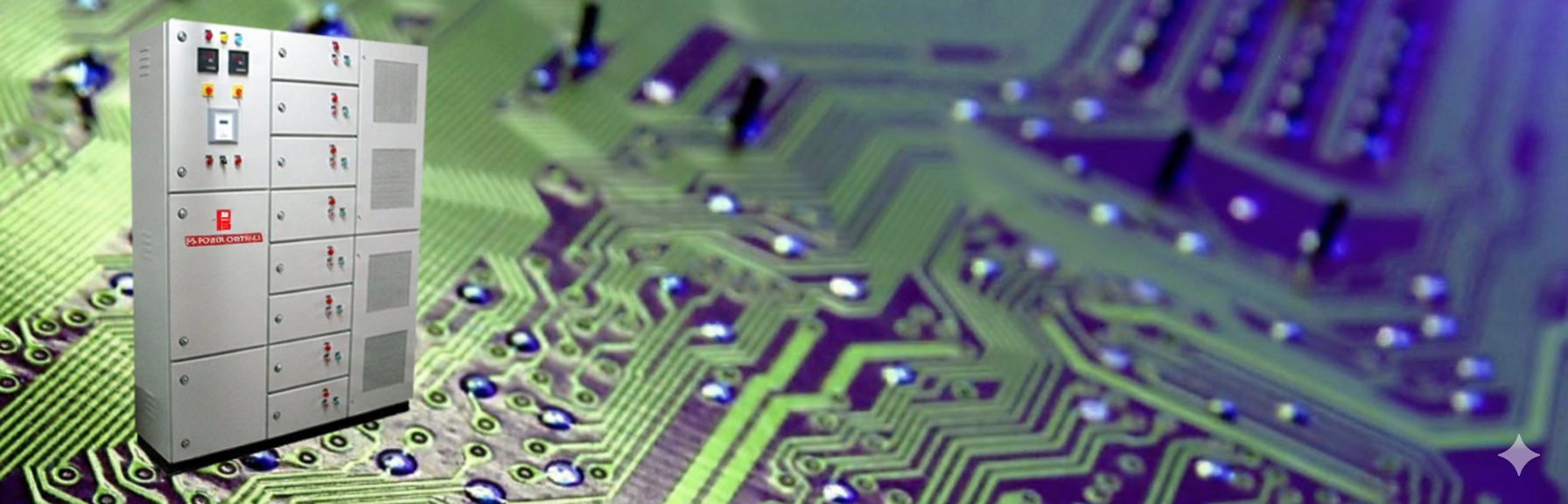

APFC Panel

Click to view On large

An automatic power factor correction unit is used to improve power factor. A power factor correction unit usually consists of a number of capacitors that are switched by means of contactors. These contactors are controlled by a regulator that measures power factor in an electrical network. To be able to measure power factor, the regulator uses a current transformer to measure the current in one phase.



Depending on the load and power factor of the network, the power factor controller will switch the necessary blocks of capacitors in steps to make sure the power factor stays above a selected value (usually demanded by the energy supplier),
Capacitors EPCOS from SIEMENS / L & T Meher
Phi cap AC Capacitors is a reliable MPP-Delta connected.

  • Three-phase 440V, 50Hz,
  • Inrush current 100*IN (ND)
  • Temp. (-25 to +55 ) degree C.
  • Minimum 1 / 2.1 or 2.5 KVAr onwards to 3,4,5,7.5,10,12.5,15,
  • 20 KVAr Stages can be designed based upon Load capacity.
  • Minimizing the line loses, thus saving power consumption.
  • Longer life for all electrical circuits, cables,...etc
